Form-Fill-Seal System CONTINUA

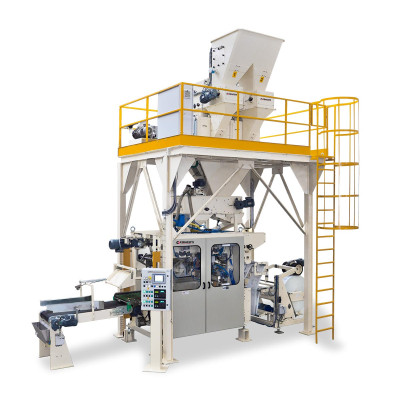

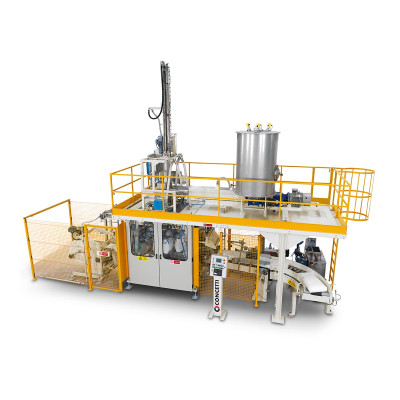

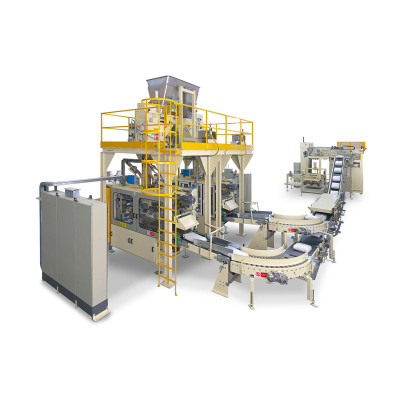

Continua Form Fill Seal
The FFS (Form Fill Seal) "Continua" machine is designed for aerated, fluidized, powdery and/or aggressive products.
The Concetti engineers have studied special technical solutions in terms of both mechanics and electronics, allowing the machine to achieve the high speeds that are required.
The operating phases and the changeover of the machine operating parameters are PLC-assisted and can be completed in a very short amount of time, without any operator intervention, thanks to the actuators mounted on the machine. The monobloc structure, equipped with inspection doors, makes the system perfectly safe for the operator.
Technical Data
| Max. productions | 600 b/h |
| Reel Ø max | 1500 mm |
| Bag weight | From 10 to 50 kg |
| Bag length | min 320 max 420 mm min 280 with a special bag-holder |
| Gusset depth | min 40 max 90 mm |
| Film thickness | 80-250 µm |
| Power supply | 380 V- 50 Hz |
| Installed power | 13 kW |
| Compressed-air consumption | 100 Nl/cycle |
| Standard degree of protection | IP 55 |
| Self-diagnostic system | |
| Soundproofing | |
| Contact parts in stainless steel |
OPTIONS
- Servo-assisted reel-change system.
- Micro-perforation device for the tubular film in order to eliminate air from the inside of the bag
- Printing of alphanumeric characters on one or both sides of the tubular film.
- 45-degree seal for bottom corners and tops of gusseted bags.
- Probe deaerationunit to minimize the volume of fluidized products.
- Probe device to eliminate air between the product and the sealed mouth of the bag.
- Device to add inert gas to the bag before the bag mouth is closed.
- Device to clean the upper bag edges when working with dusty products.
- Possibility of handling reels with a preformed handle.
- Painting of the structure with a cycle to meet the needs imposed by the products to be handled.
- Construction of the entire machine in stainless steel.
- Base for moving the machine (in manual or motorized), in order to use it with several outlets (silos) and work with products that have different characteristics.
- Device to reopen and clean the upper bag edges for products that could impede sealing.
- Gusseting device to make a gusseted bag from flat tubular film.
- IP 65 protection
- Dust-proofing cushions on the bag-holder.
- Device for sealing a strip over the bag mouth.
- Possibility of making the handle during the bag-forming phase.
NOTE: The information listed in the chart is strictly indicative and will depend on the specific features of each machine.
| Max. productions | 900 b/h |
| Reel Ø max | 1500 mm |
| Bag weight | From 10 to 40 kg |
| Bag length | min 550 max 1000 mm |
| Bag width | min 320 max 420 mm min 280 con with a special bag-holder |
| Gusset depth | min 40 max 90 mm |
| Film thickness | 80-250 µm |
| Power supply | 380 V- 50 Hz |
| Installed power | 16 kW |
| Compressed-air consumption | 80 Nl/cycle |
| Standard degree of protection | IP 55 |
| Self-diagnostic system | |
| Soundproofing | |
| Contact parts in stainless steel | nbsp; |
OPTIONS
- Servo-assisted reel-change system.
- Micro-perforation device for the tubular film in order to eliminate air from the inside of the bag
- Printing of alphanumeric characters on one or both sides of the tubular film.
- 45-degree seal for bottom corners and tops of gusseted bags.
- Probe deaerationunit to minimize the volume of fluidized products.
- Probe device to eliminate air between the product and the sealed mouth of the bag.
- Device to add inert gas to the bag before the bag mouth is closed.
- Device to clean the upper bag edges when working with dusty products.
- Possibility of handling reels with a preformed handle.
- Painting of the structure with a cycle to meet the needs imposed by the products to be handled.
- Construction of the entire machine in stainless steel.
- Base for moving the machine (in manual or motorized), in order to use it with several outlets (silos) and work with products that have different characteristics.
- Device to reopen and clean the upper bag edges for products that could impede sealing.
- Gusseting device to make a gusseted bag from flat tubular film.
- IP 65 protection
- Dust-proofing cushions on the bag-holder.
- Device for sealing a strip over the bag mouth.
- Possibility of making the handle during the bag-forming phase.
NOTE: The information listed in the chart is strictly indicative and will depend on the specific features of each machine.
| Max. productions | 1200 b/h |
| Reel Ø max | 1500 mm |
| Bag weight | From 10 to 40 kg |
| Bag length | min 550 max 1000 mm |
| Bag width | min 320 max 420 mm min 280 con with a special bag-holder |
| Gusset depth | min 40 max 90 mm |
| Film thickness | 80-250 µm |
| Power supply | 380 V- 50 Hz |
| Installed power | 18 kW |
| Compressed-air consumption | 110 Nl/cycle |
| Standard degree of protection | IP 55 |
| Self-diagnostic system | |
| Soundproofing | |
| Contact parts in stainless steel |
OPTIONS
- Servo-assisted reel-change system.
- Micro-perforation device for the tubular film in order to eliminate air from the inside of the bag.
- Printing of alphanumeric characters on one or both sides of the tubular film.
- 45-degree seal for bottom corners and tops of gusseted bags.
- Probe deaerationunit to minimize the volume of fluidized products.
- Probe device to eliminate air between the product and the sealed mouth of the bag.
- Device to add inert gas to the bag before the bag mouth is closed.
- Device to clean the upper bag edges when working with dusty products.
- Possibility of handling reels with a preformed handle.
- Painting of the structure with a cycle to meet the needs imposed by the products to be handled.
- Construction of the entire machine in stainless steel.
- Base for moving the machine (in manual or motorized), in order to use it with several outlets (silos) and work with products that have different characteristics.
- Device to reopen and clean the upper bag edges for products that could impede sealing.
- Gusseting device to make a gusseted bag from flat tubular film.
- IP 65 protection
- Dust-proofing cushions on the bag-holder.
- Device for sealing a strip over the bag mouth.
- Possibility of making the handle during the bag-forming phase.
NOTE: The information listed in the chart is strictly indicative and will depend on the specific features of each machine.
| Max. productions | 1600 b/h |
| Reel Ø max | 1500 mm |
| Bag weight | From 10 to 40 kg |
| Bag length | min 550 max 1000 mm |
| Bag width | min 320 max 420 mm min 280 con with a special bag-holder |
| Gusset depth | min 40 max 90 mm |
| Film thickness | 80-250 µm |
| Power supply | 380 V- 50 Hz |
| Installed power | 18 kW |
| Compressed-air consumption | 110 Nl/cycle |
| Standard degree of protection | IP 55 |
| Self-diagnostic system | |
| Soundproofing | |
| Contact parts in stainless steel |
OPTIONS
- Servo-assisted reel-change system.
- Micro-perforation device for the tubular film in order to eliminate air from the inside of the bag
- Printing of alphanumeric characters on one or both sides of the tubular film.
- 45-degree seal for bottom corners and tops of gusseted bags.
- Probe deaerationunit to minimize the volume of fluidized products.
- Probe device to eliminate air between the product and the sealed mouth of the bag.
- Device to add inert gas to the bag before the bag mouth is closed.
- Device to clean the upper bag edges when working with dusty products.
- Possibility of handling reels with a preformed handle.
- Painting of the structure with a cycle to meet the needs imposed by the products to be handled.
- Construction of the entire machine in stainless steel.
- Base for moving the machine (in manual or motorized), in order to use it with several outlets (silos) and work with products that have different characteristics.
- Device to reopen and clean the upper bag edges for products that could impede sealing.
- Gusseting device to make a gusseted bag from flat tubular film.
- IP 65 protection
- Dust-proofing cushions on the bag-holder.
- Device for sealing a strip over the bag mouth.
- Possibility of making the handle during the bag-forming phase.
NOTE: The information listed in the chart is strictly indicative and will depend on the specific features of each machine.
| Max. productions | 1800 b/h |
| Reel Ø max | 1500 mm |
| Bag weight | From 4 to 40 kg |
| Bag length | min 550 max 1000 mm |
| Bag width | min 320 max 420 mm min 280 con with a special bag-holder |
| Gusset depth | min 40 max 90 mm |
| Film thickness | 80-250 µm |
| Power supply | 380 V- 50 Hz |
| Installed power | 18 kW |
| Compressed-air consumption | 110 Nl/cycle |
| Standard degree of protection | IP 55 |
| Self-diagnostic system | |
| Soundproofing | |
| Contact parts in stainless steel |
OPTIONS
- Servo-assisted reel-change system.
- Micro-perforation device for the tubular film in order to eliminate air from the inside of the bag
- Printing of alphanumeric characters on one or both sides of the tubular film.
- 45-degree seal for bottom corners and tops of gusseted bags.
- Probe deaerationunit to minimize the volume of fluidized products.
- Probe device to eliminate air between the product and the sealed mouth of the bag.
- Device to add inert gas to the bag before the bag mouth is closed.
- Device to clean the upper bag edges when working with dusty products.
- Possibility of handling reels with a preformed handle.
- Painting of the structure with a cycle to meet the needs imposed by the products to be handled.
- Construction of the entire machine in stainless steel.
- Base for moving the machine (in manual or motorized), in order to use it with several outlets (silos) and work with products that have different characteristics.
- Device to reopen and clean the upper bag edges for products that could impede sealing.
- Gusseting device to make a gusseted bag from flat tubular film.
- IP 65 protection
- Dust-proofing cushions on the bag-holder.
- Device for sealing a strip over the bag mouth.
- Possibility of making the handle during the bag-forming phase.
NOTE: The information listed in the chart is strictly indicative and will depend on the specific features of each machine.
